BB 200 - Upon Request

The BB200 IoT Appliance is a simplified monitoring and data collection platform for facilities. The industrial-grade hardware package allows cloud data collection and enterprise edge connectivity within buildings utilizing the Radix IoT Cloud configuration and Data Organization Engine. When possible the RD201C should be used in new applications given its expanded I/O support.
Fan-less industrial design for long service life
Multiple communications inputs data sources
Double redundant outbound / back-haul data connections
12/24VDC Powered or Power over Ethernet (802.3at Compliant)
Simple Cloud based on-boarding and configuration
Protocol support for prevailing building systems and protocols
Unified API support from the Radix IoT Cloud with a single source API
Local storage options for data caching
Enterprise native for mass location deployment and management
Start a Design
Simple deployment and flexible software-based protocol connectors within Mango eliminate the need for multiple gateways/bridges in a facility to gather data. The unit fits squarely in smart building and IoT applications such as intelligent energy metering, factory automation, retail management, edge data center monitoring, and global property management oversight.
Functional Overview
Low Power Braswell Intel® Celeron® Processor

N3160 with 8 GB system memory – delivering high performance and low power consumption for mass data acquisition needs from a variety of subsystems within facilities.

Complete Connectivity

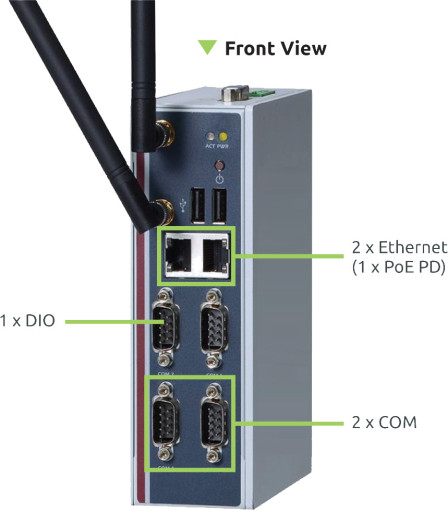

Complete digital connectivity to individual sub-systems via: two Gigabit LAN ports, two RS-232/422/485 ports, two USB 2.0 ports, two USB 3.0 ports, a digital IO interface.

Simple to Deploy

The unit comes with Mango OS preinstalled and ready to go, supporting dozens of protocols out of the box, and requires minimal installation time, only needing rack or wall mounting and wiring of inbound data connections and a single outbound Internet connection.

Cloud Connectivity

Cloud Connectivity is achieved through the use of Mango CloudConnect allowing hundreds to thousands of Mango units to be deployed to form a telemetry network for both small or large portfolios of monitoring.

Radix IoT Cloud

The Radix IoT Cloud Platform consolidates, tags, and formats all the Radix IoT gathered data into a single source API allowing remote analytics and visualization platforms to access all the data from enterprise from a single source of data truth.

Specifications
Standard Color
White
Construction
Extruded aluminum and heavy-duty steel, IP40
CPU
Intel® Celeron® processor N3160 (1.6 GHz/4-core)
Part Number
BB200
System Memory
8GB
I/O
Serial Port
2 x RS-232/422/485 (COM 1/2) with DB9 Connectors
Native Protocols: BacNetMS/TP, ModBus RTU
See RadixIoT.com for further serial protocol options
Supports Auto Flow Control in RS-485 mode

USB
2 x USB 3.0
2 x USB 2.0

RTC
Battery on-board

Local Storage
Standard: SSD 480GB - mSATA

LAN Ethernet Ports
1 x 10/100/1000 Mbps Ethernet (WAN - Cloud Service Connection)
1 x 10/100/1000 Mbps Ethernet (LAN - Local Device Network)
1 x PoE PD compliant with IEEE 802.3at (WAN Port)

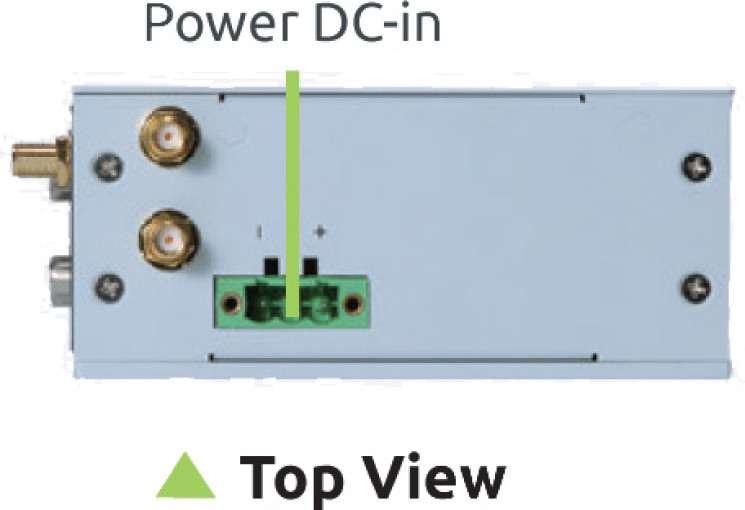

Power Input
DC terminal block: 12 ~ 24V DC-In
PoE: IEEE 802.3at

Wireless
A Optional 802.11a/g Wi-fi
AOptional 4G/LTE - Single SIM card support for 4G/LTE networks

DIO
1 x Digital I/O connector
DB9 8-bit programming connector
TTL - 5V
External isolation required
DIO programming operation:
• I/O sink current is 8 ~ 10mA - (Output drive current ±50 mA)
• Individual input/output programming
Integral Watchdog
Timer based: 255 levels, 1 ~ 255 sec.
System Indicator
Power, active, COMs (TX/RX)
Power Supply
Power Input Range: 12 ~ 24 VDC
Power Input Rating: 12 ~ 24 VDC, 2.09 ~ 1.09A
Power Protection: DC Version OVP, Reverse Protection
Operating Temperature
-20°C ~ +60°C (-4°F ~ +140°F)
*The frequency of CPU will down when system operating temperature over +55°C
Humidity
10% ~ 95%
Vibration Endurance
2 Gms (5 ~ 500Hz, amplitude 0.35 mm; operation/storage/transport)
Weight
1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certificate
CE, FCC
Dimensions
48 mm (1.88”) (W) x 110 mm (4.33”) (D) x 155 mm (6.1”) (H)
Mounting
DIN-rail, wall mount
Remote Software
Radix IoT Cloud
ABBCN - Optional Integral 4G/LTE modem (service required)
ADenotes optional add-on feature
