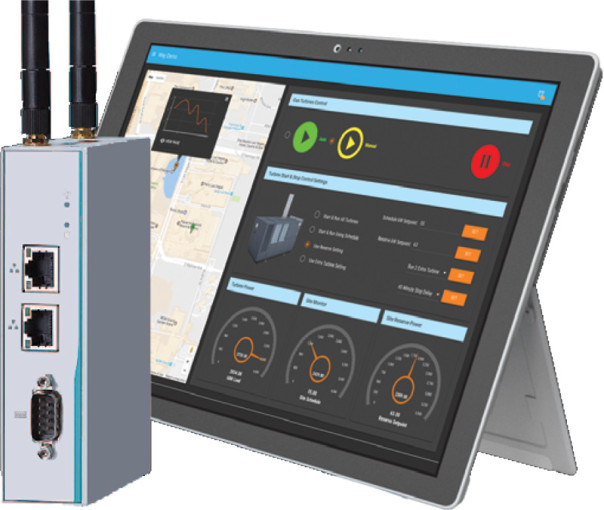

RD 121C

The RD 121C Micro IoT appliance enables cloud data collection and enterprise edge connectivity for OEM applications or smaller critical facilities or industrial IoT equipment that require mass data aggregation.
Solid State (Fan-less) Industrial Design for long service life
Single Serial COM Port (RS232, RS485)
Digital 8bit TLL Digital I/O port
12/24VDC Powered
Simple cloud-based onboarding and configuration with Mango OS or Radix IoT OEM OS
Protocol support for prevailing building systems and protocols
Unified RestAPI support for edge data device aggregation
Global cellular capabilities
Integral GPS for location analytics
Low profile design for integrated OEM applications
Two Gigabit LAN/WAN ports
Two USB 2.0 ports
Easily built into other equipment or enclosures, the unit also supports global cellular for remote data aggregation. The box easily provisions to the Mango OS Radix IoT OEM OS for remote management or monitoring. The unit is a perfect solution for intelligent energy metering, property automation, oil and gas applications, solar or remote unstaffed site monitoring of equipment.
Functional Overview
Low Power Intel® Celeron®

N3350 1.1 GHz dual-core processor with 8GB system memory delivering high performance and low power consumption.

Simple to Deploy and Provision

Wire up the devices to be monitored, add an Outbound Ethernet connection (optionally Wifi or LTE) and apply power. All setup can be performed within the Mango Cloud Platform remotely.

Native Connectivity

Native Connectivity to BACnet/IP, BACnetMS/TP, MQTT, Modbus RTU/TCP, Serial and over plenty of protocols to gather data.

Mango Cloud

The Mango Cloud platform consolidates, tags, and formats all the harvested data into a single source API allowing remote analytics and visualization platforms to access the entire data collection.

Global Cellular and Integral GPS

Global Cellular and Integral GPS allowing for data backhaul via worldwide cellular networks when ethernet is not a possibility.

IP40 Rating

IP40 Rating with a rugged wide-temperature operating range, and fan-less design making it perfect for housing directly in sealed equipment or electrical cabinets in areas without climate control.

Standard Color
Extruded aluminum and heavy-duty steel, IP40
Intel® Celeron® processor N3350 (1.1 GHz)
Part Number
System Memory
8 GB DDR3L 1866Mhz
Serial Port
1 x RS-232/485 (COM) with DB9 Connectors Native Protocols: BacNetMS/TP, ModBus RTU See Radixiot.com for further serial protocol options Supports Auto Flow Control in RS-485 mode
2 x USB 2.0
Battery on-board
Local Storage
SSD 64GB - SATA III 6.0GBit/s
LAN Ethernet Ports
1 x 10/100/1000 Mbps Ethernet
(WAN - Cloud Service Connection)
1 x 10/100/1000 Mbps Ethernet
(LAN - Local Device Network)
Power Input
DC terminal block: 12 - 24VDC Input
(Power supply not included)
4G/LTE Global Compliant Cellular Standard
Optional secondary transceiver
(Services fees apply per month for cellular connectivity)
1 x DI/DO (8-Bit Programmable DB9 Female Connector)
TTL - 5V
External isolation required
DIO programming operation:
- I/O sink current 10mA
- Individual Input/Output programming
RD121WM - Wall Mount Adapter
RDCPM - Panel Mount Cellular Antenna Alternative
RDGPSANT - Magnetic Mount GPS Antenna
Integral Watchdog
Timer based: 255 levels, 1 to 255 sec.
System Indicator
Power, active
Power Supply
Power Input Range: 12 ~ 24 VDC
Power Input Rating: 12 ~ 24 VDC, 1.39A ~ 0.72A
Power Protection: DC Version with Over Voltage Protection +20% Reverse polarity protection
Operating Temperature
-20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 95%
Vibration Endurance
2 Gms (5 ~ 500Hz, amplitude 0.35 mm; operation/storage/Transport)
CE, FCC Class A
Remote Software
Radix IoT Engine, and Mango OS
DIN-rail, wall mount
0.3 kg (0.67 lb)/0.46 kg (1 lb)
31 mm (1.22”) (W) x 100 mm (3.93”) (D) x 125 mm (4.92”) (H)
