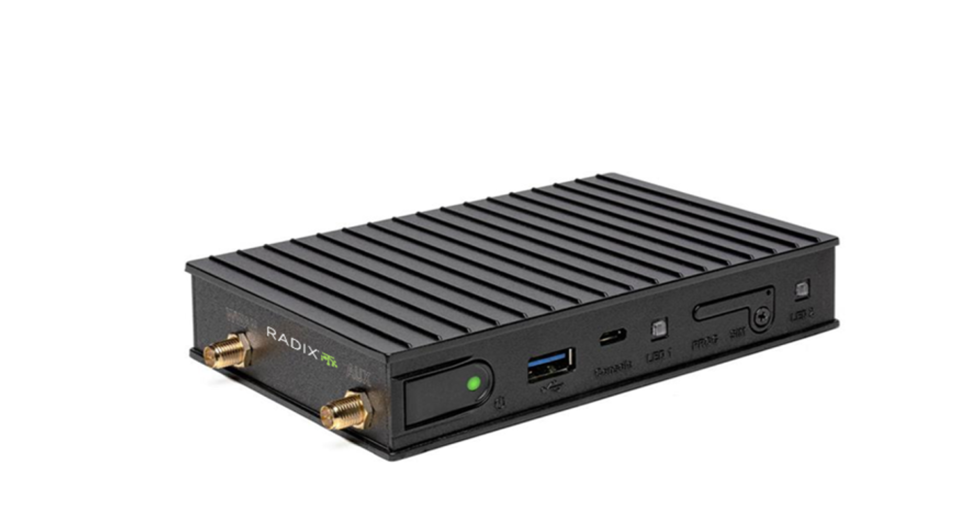

Edge IoT Appliance

RD50

A compact, fanless edge gateway purpose-built for field deployment. The RD50 runs Mango out of the box, connecting serial and IP devices at the network edge with minimal power draw and zero maintenance.

Technical Specifications

Hardware specs

Processor ARM Cortex-A7, 1 GHz
Memory 512 MB DDR3
Storage 4 GB eMMC flash
Ethernet 1x 10/100 Mbps RJ-45
Serial 1x RS-485, 1x RS-232
USB 1x USB 2.0 Host
Power 9–36 VDC, < 5 W typical
Operating Temp -20 °C to +60 °C
Dimensions 100 x 70 x 25 mm
Mounting DIN rail or wall mount
OS Embedded Linux
Enclosure Aluminum, IP30

Supported Protocols

Protocols

BACnet IP BACnet MS/TP Modbus TCP Modbus RTU MQTT MQTT Sparkplug B HTTP JSON SNMP 1-Wire Serial M-Bus

Additional protocols available via Mango modules. See full compatibility list.

Hardware Features

Built for the edge

  • Fanless, solid-state design — no moving parts
  • DIN-rail or wall mount for panel installation
  • Wide-range DC input for industrial power buses
  • Extended operating temperature for harsh environments
  • Runs Mango out of the box — zero OS configuration
  • Remote firmware updates via Mango interface

Interested in the RD50?

Contact our team for pricing, lead times, and volume availability.

Contact Sales View Compatibility
